Echo Aluminum Select Series

Bring What Moves You.

Lightweight aluminum construction meets enclosed recreational hauling. Explore Echo configurations for snowmobiles, ATVs, motorcycles, and the gear that goes with them.

Sizes4 – 8.5 wide

FrameAll aluminum

ExteriorAegis screwless system

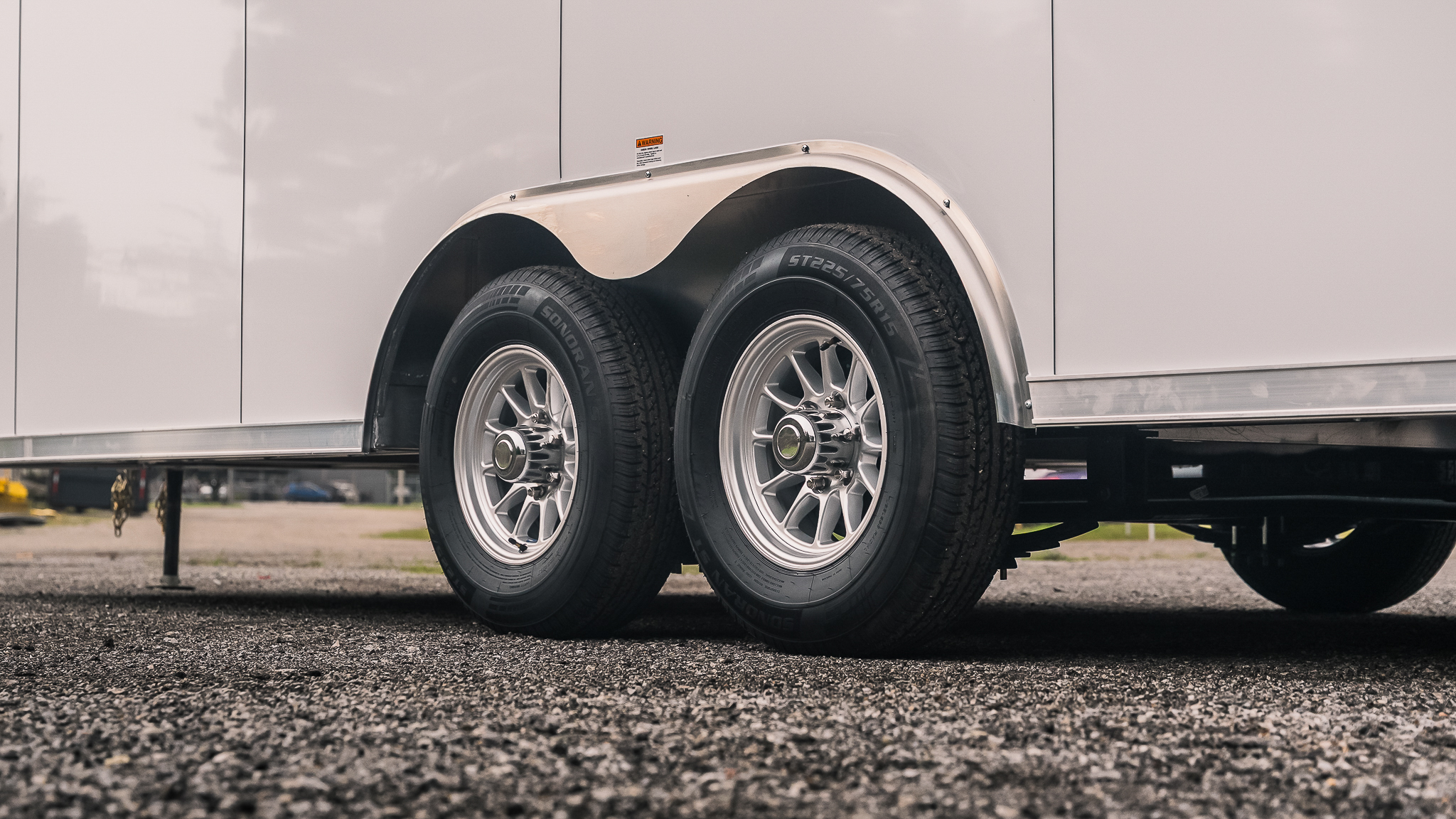

WheelsAluminum, smooth fenders

Why aluminum

Built Around Your Gear.

Echo uses aluminum frame mains, wall posts, roof bows, and crossmembers to create the foundation for your recreational trailer. Add enclosed cargo space, model-specific loading access, and room for your equipment, and your next outing starts with choosing the right fit.

Snowmobiles

Pull-on, pull-off hauling all winter without fighting road salt.

ATVs & side-by-sides

Ramp door with a water-resistant extension and room for gear.

Motorcycles

Lower weight is easier on smaller tow vehicles.

Weekend gear

A clean, secure space for everything else you bring.

The Aegis System · Echo

Designed to Move With Your Trailer.

Exterior panels expand and contract as temperatures change, while the trailer flexes during use. Cross developed the proprietary Aegis System to accommodate that movement, helping maintain a smoother exterior and reducing reliance on sealant alone for weather protection.

  1. 01
    Ripple-resistant exterior wall panelsFloating screwless panels and extrusions, advanced adhesives for a stronger bond to the frame, and better oxidation resistance.
  2. 02
    Self-flashing roofNo wood, and a tighter bond to the frame.
  3. 03
    Proprietary self-flashing extrusionA trim profile that needs less sealant and fewer screws for a better weather seal.

Specifications

Echo specifications

Eight sizes, from 4 wide single axle to 8.5 wide tandem.

Spec 4 Wide SA 5 Wide SA 6 Wide SA 6 Wide TA 7 Wide SA 7 Wide TA 7.5 Wide TA 8.5 Wide TA
Overall height 70.5″ 79″ 91″ 92″ 99″ 99″ 99″ 100″
Overall width 64″ 78″ 92″ 92″ 102″ 102″ 102″ 102″
Interior height 48″ 60″ 72″ 72″ 78″ 78″ 78″ 78″
Interior width 45″ 57″ 69″ 69″ 81″ 81″ 87″ 97″
Rear opening height 43.5″ 55.5″ 67.5″ 67.5″ 73.5″ 73.5″ 73.5″ 77.5″
Rear opening width 41.75″ 49.75″ 65.75″ 65.75″ 77.75″ 77.75″ 83.75″ 93.75″
Frame 2×3 2×4 2×5 2×6
Mains .125 aluminum tube .190 double hollow aluminum tube
Axle 2,000 lb 3,500 lb
Brakes Optional Electric
Tires (radial) ST175/80R13 ST205/75R15
Hitch ball 2″ 2-5/16″
Jack 2,000 lb 5,000 lb
Gravel guard (ATP) 16″ 24″
Interior domes (800 lm) Optional 1 2
Switch & cover plate Optional 1
Tie-downs Optional 4 D-rings
Rear door Swing Ramp w/ water-resistant extension

Swipe to see all sizes. SA = single axle, TA = tandem axle. Specs subject to change; confirm with your dealer.

Standard across every size

Wall posts.060 aluminum tube, 16″ O.C.
Roof bows.060 aluminum tube, 16″ O.C.
Crossmembers.125 × 1.5 × 3 tube, 16″ O.C.
Roof1-piece Light Lid
Exterior.080 aluminum composite panel
FastenersScrewless sides & trim — Aegis
WheelsAluminum
SuspensionSpring
FendersSmooth
Ceiling linerOptional
Interior walls3/8″ water resistant
Sidewall vents(2) on 5 wide and up
Flooring3/4″ water resistant

Gallery

Echo up close

Backed by Cross

Warranty coverage

3-Year Structural

Main frame, crossmembers, railings and subframe.

1-Year Comprehensive

Defects in material and workmanship under normal use.

1-Year Paint

Pro-rated paint coverage.
